With nearly two decades of combined experience in filter industry, we are dedicated to providing OEM service and turning your concept in to reality by offering custom filters. Shown below are some of our custom products.

OEM Optional Filter Materials

Material	Weight	Air permeability	Filter fineness
Polyester	150-220g	100-110L/㎡S	5-10μ
Toray polyester	260g	40-50L/㎡S	3μ
Anti-static polyester	245g	60L/㎡S	3-5μ
PTFE laminated polyester	245g	90L/㎡S	0.1-0.3μ

1. Inquiry

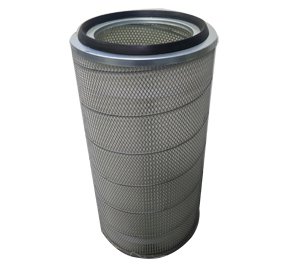

2. Air Filter Element for Laser Cutting
3. - System flow: 160m³/H
  - Fan flow: 200m³/H
  - Static pressure: 900PA
  - Power: 80W
  - Filter efficiency: 0.3µm 99.97%
  This type of air filter element is mainly used for filtration of harmful smoke and dust, and removal of industrial waste gases for various applications, such as iron soldering, wave soldering, laser welding, reflow soldering, laser engraving, laser marking, laser cutting, arc welding, pad printing, screen printing, chemistry experiments, medical treatment, etc.
1. Inquiry

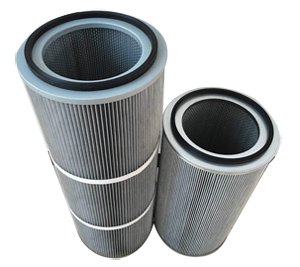

2. Anti-Static Powder Coating Cartridge Filter
3. - Basis weight: 260g/㎡
  - Filter paper thickness: 0.65mm
  - Air permeability: 60L/㎡S
  - Metal fiber surface resistance: 10Ω
  - Filter efficiency: 3-5µm 99.2%
  Features
  - The lifespan is 3-5 times longer than conventional fiber filter element;
  - Collected dust is hard to be adhered on filter medium, thus increasing ventilation rate by 30%;
  - Easy to clean, better cleaning efficiency;
  - Reduced production cost, the powder can be removed from the filter utilizing high pressure air during color changing, and then implement the powder coating process with other colors;
1. Inquiry

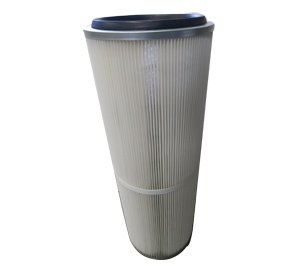

2. PTFE Laminated Cartridge Filter
3. - Filter medium: high density PTFE laminated filter paper (imported from Japan)
  - Blowback air pressure: 8-10kg
  - Air flow: 1000m³/T
  - Filter fineness: 0.1-0.3µm
  - Filter element color: white
  Features
  - Japan imported PTFE laminated polyester filter medium, small pore size, high filter fineness;
  - Smooth surface, easy to clean;
  - Oil and water repellent;
  - Corrosion resistant, not easy to rust;
  - Operation temperature below 135℃

After a new filter being installed, the water might be slightly turbid or foamy in first two days, it will be turn back to normal after two days. This is a common occurrence that will not affect the filtration efficiency, please be rest assured.
GDJM filters can be reused after simple washing and drying.
